Groves Offers New Heavy-Duty Bundle Rack with 9,000-lb. Capacity

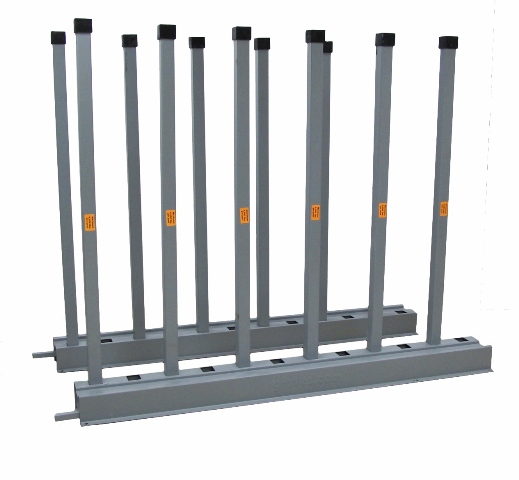

Groves heavy duty bundle rackGroves Incorporated is now offering a new Heavy Duty Bundle Rack that was designed to safely store jumbo sized stone bundles weighing up to 9,000 lbs. between two posts, with a maximum weight of 4,500 lbs. per post. It is the largest and strongest bundle rack the company has ever sold. The outside rails are designed with slots to hold 2 x 4s, which protect the slab edges and the finish on the rails. Heavy-duty powder-coated rails 11-in. wide by 5-1/2-in. high by 90-in. long butt together for desired length. Outside rails have 2.5-in. square holes spaced 5 in. apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1 in. up from the bottom. 2-1/2-in. square tube posts are coated with a heavy-duty powder-coat finish. Rails shipped with 11-in. connector tube for butting rails together in a straight line. For safety, the bottom rails must be bolted to the floor and the 9,000-lb. capacity (4,500 lbs. per post) should not be exceeded.
